變壓器、線圈、電機等絕緣，固定，包扎

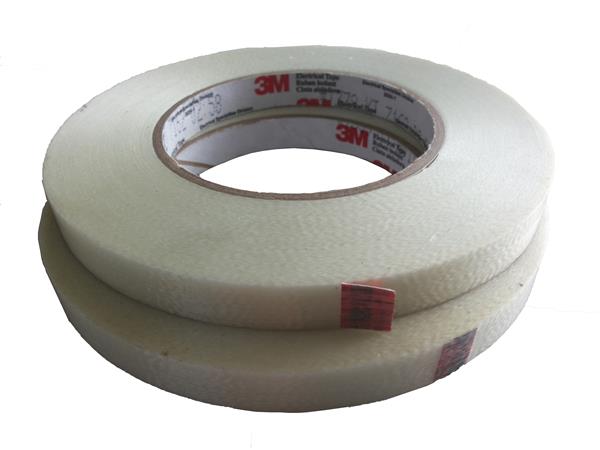

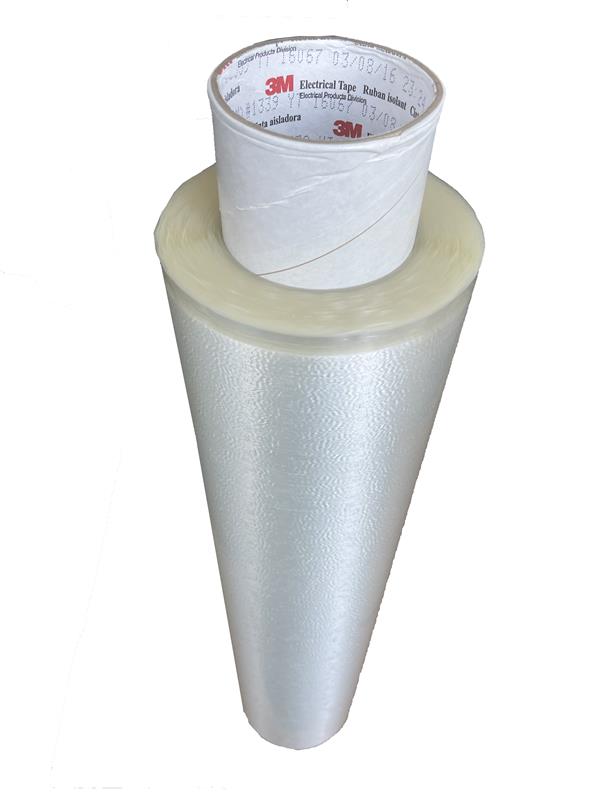

3M™ 電氣絕緣膠帶 1339是一種耐溶劑、耐高溫的樹脂膠帶。

適用于既需要聚酯薄膜的介電強度又需要玻璃纖維的高機械強度的場合。

從形性佳、耐穿刺性以及理想的電氣特性

介電強度高，邊緣撕裂強度高，用于各種涂層、粘接和飽和應(yīng)用

用于錨固導(dǎo)線以綁扎線圈并進行線圈端部貼扎的良好的產(chǎn)品。



3M™ 電氣絕緣膠帶 1339是一種耐溶劑、耐高溫的樹脂膠帶。適用于既需要聚酯薄膜的介電強度又需要玻璃纖維的高機械強

械強度的場合。

Polyester Film/Glass Filament Reinforcedwith Acrylic, Pressure-Sensitive AdhesiveData Sheet Excellent conformability High tensile strength High dielectric strength Class B (130°C) UL recognition3M™ Electrical Tape 1339 is a polyesterfilm/glass filament tape coated with apressure-sensitive acrylic adhesivesystem. The polyester film/glass backinghas excellent physical ａnd electricalcharacteristics. The back side of the tapehas a special coating which allows for aneven, controlled unwind. It also promotespermanent anchoring in application.Typical applications for 1339 include leadanchoring, banding of coils, lead tapeanchoring ａnd other uses where tensilestrength is needed.UL Component Recognition Temperatures not exceeding 130°CUL File Number E17385 A ａnd B, GuideOANZ2. Underwriters Laboratories (UL)recognized products have been evaluatedfor use as components of end-productequipment that is listed or classified byUL. To achieve UnderwritersLaboratories recognition, componentconstruction must meet UL specificationsand conditions of acceptability for properand safe use of the component or product.

Thickness  16.5 mils (0,165 mm)
